The Heat Pump Test Center WPZ has commissioned new teststands in June 2016, which meet all requirements of the current test standards. Key data of the current test stands is described below:

Test rigs

air / water test stand

  • 2 air / water test stands à 50 kW at A2/W35 (EN 14511)
    Test stand dimenions: 3.8m x 7.8 m x 4.0m
    Door dimensions: 3.5m x 2.5 m
  • 2 air / water test stands à 25 kW at A2/W35 (EN 14511)
    Test stand dimenions: 4.0m x 4.0m x 3.2m
    Door dimensions: 3.0m x 2.5m
  • Measurement of heating or cooling capacity
  • Heat sink volume flow up to 15'000 kg/h
  • Temperature range from -25°C to +45°C (Luft)
  • Sound measurements possible
  • 2 brine / water test stands à 100 kW at B0/W35 (EN 14511)
  • Measurement of heating or cooling capacity
  • Heat sink volume flow up to 20'000 kg/h
  • Heat source volume flow up to 28'000 kg/h
  • Could also be used as water / water test stand
  • Sound measurements possible

  • domestic hot water test stand
    Test stand dimenions: 4.0m x 4.0m x 3.2m
    Door dimensions: 3.0m x 2.5m
  • 1 domestic hot water test stand with water consumption profile from S to XXL (EN 16147 and ErP-Richtlinie)
  • Both brine / water and air / water heat pumps with storage tank can be measured
  • Sound measurements possible
  • The team "Thermal Energy Systems" at the Institute for Energy Systems IES has three psychometric rooms.
  • The two large psychometric rooms can be used separately or in combination.
  • As separate units, test setups can be tested using two different climatic conditions.
  • As a composite, the psychometric rooms may e.g. act for heat pumps as heat source or heat sink.
  • The third and smallest climat chamber, also called climat cabinet, can be used very flexibly. This unit was developed and assembled by the Institute for Energy Systems IES and allows temperature from -30°C to +80°C.
  • The soundproof psychometric room can be used very flexibly.
  • It was developed and assembled by the Institute for Energy Systems IES.

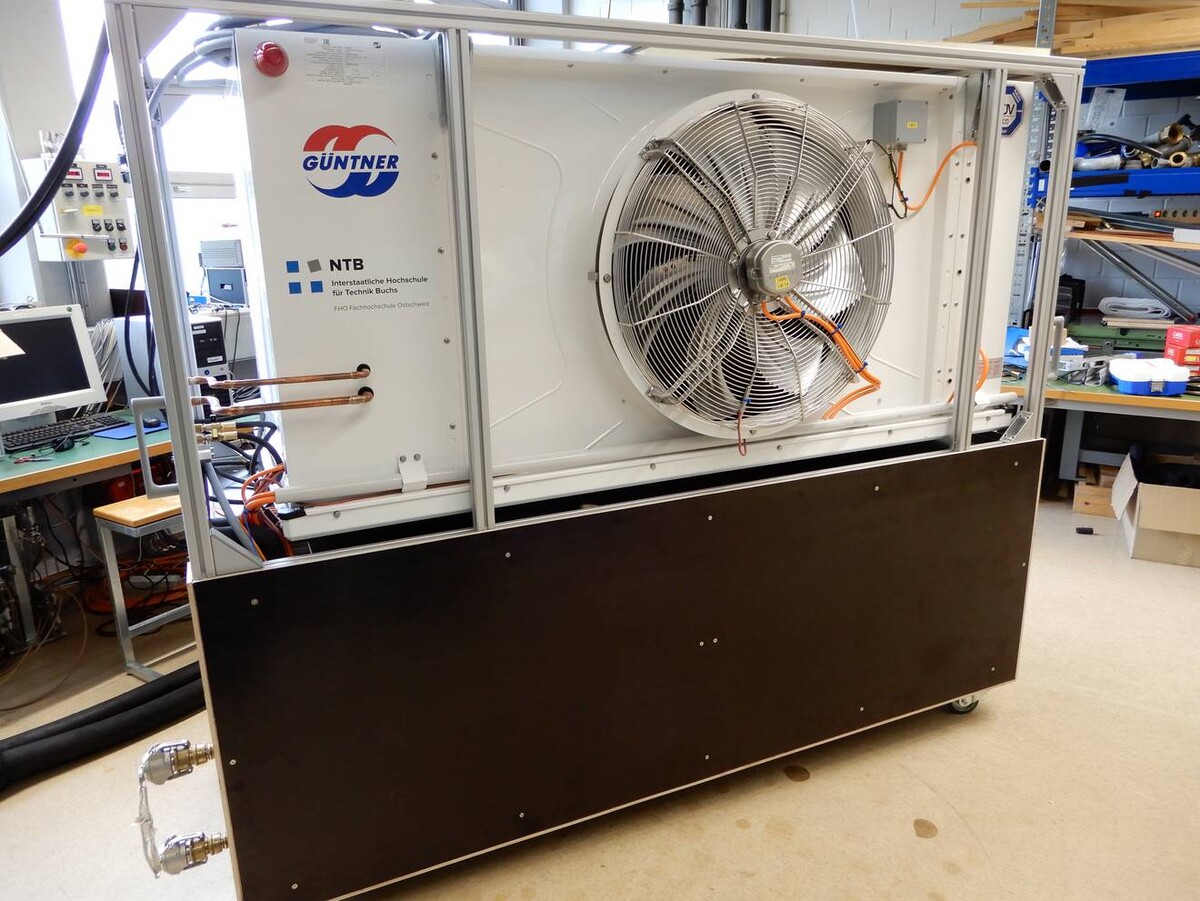

Low Temperature  Air / Water Heat Pump with CO2 (R744) as refrigerant

Dimensions: 2350 x 1000 x 1900 mm

Weight: ca 950 kg

Temperature range climat chamber:

  • -25°C ... -50°C for small psychometric rooms
  • -40°C for other (large) test stands

Capacity:

  • > 7.5 kW @ -30°C
  • 5 kW @ -50°C
  • ca. 2 kW -> 3 kW usable capacity (psychometric rooms)

Tieftemperatur Luft-Wasser-Wärmepumpe mit CO2 (R744) als Kältemittel

Masse: 2350 x 1000 x 1900 mm

Gewicht ca 950 kg

Temperaturbereich für Klimakammer:

  • -25°C ... -50°C einstellbar für kleinere Klimakammern
  • -40°C für grosse Klimakammer

Kälteleistung:

  • > 7.5 kW bei -30°C
  • 5 kW bei -50°C
  • Wärmeeintrag durch kleine Klimakammer ca 2 kW -> 3 kW nutzbare Kälteleistung

Die Kälteanlage wurde vom IES selbst entwickelt, gebaut und getestet.
