HF measurement laboratory

Our very well-equipped HF measurement laboratory is at your disposal! We can carry out various HF measurements for you or provide you with the necessary equipment. Please contact us! We have the right solution to fulfill your task.

The ESA Institute has the following equipment:

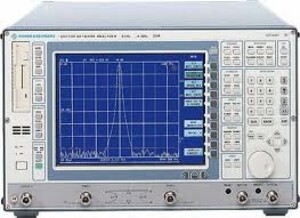

- Vector Network Analyzer



- Frequency range: 10 MHz to 20 GHz

- 60001 points per trace

- Dynamic range better than 123 dB (typ. 130 dB)

- Power sweep range >50 dB

- Intuitive Windows-based operation via mouse

- Vector Network Analyzer



- Frequency range: 9KHz to 4GHz

- Dynamic Range: typ. 120 dB

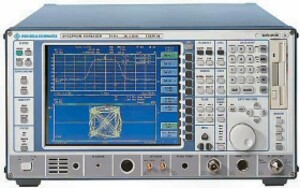

- Spectrum Analyzer



- Frequency range: 20 Hz to 26.5 GHz

Contact us for more information!

Prof. Dr. Tindaro Pittorino

ESA Institut für Elektronik, Sensorik und Aktorik Professor für Hochfrequenz- und Optoelektronik

+41 58 257 34 20 tindaro.pittorino@ost.ch
